Malihini - improvements : Joseph Oster

35' Shuttleworth "cruiser/racer" catamaran
Built by Doug and Sharon Gibson on Kauai, Launched 1995

Overview

Malihini is well-designed for fast ocean passages and well-built of 5/8" Divinicell foam core, epoxy and fiberglass. Though she has made a round trip to California and sailed between the Hawaiian islands, she has been used primarily for daysail racing rather than cruising. This is a list of potential improvements to the boat, partly for maintenance reasons, partly for greater comfort as a live aboard (or charter) and partly to enhance her sailing ability and ease of handling. Some are high priority while others can be deferred or may be debatable. The list is a result of three months using the boat at anchor instead of from a dock.

Priority

Maintenance

Live Aboard / Charter

Sailing

photos

Photo Gallery: Hanalei Bay


Standing Rigging

The mast on Malihini has five wire stays attached at the top: one headstay, two shrouds and two fixed backstays. With a stiffer mast, like a 16" chord rotating wing, this would reduce to three stays.

In addition to two fixed backstays, there is a pair of running backstays that each attach at two points to the mast, just below each set of spreaders. The windward one must be kept tight, the leeward one retracted out of the way of the main. The running backs can too easily snag on the spreaders.

Finally, the mast has two sets of spreaders, adding more wire rigging.


Possible Alternative Mainsheet/Traveler System

NOTE: There is nothing wrong with the traveler and mainsheet on Malihini.

The lines proposed below work instead of traveler car controls to tightly control the boom, and by consequence, the traveler position. The bottom of the running backstays on Malihini can be re-purposed as boom control lines using the same winches, rope clutches, fair leads, etc., without moving any deck hardware. The tops of the running backs, connected to the mast at two points, would be led outboard and aft to existing hard points, perhaps out of the way of the boom? The (old) running back bottoms connected to the boom end will make a huge difference in sail handling, especially during jibes. The boom vang, and eventually the traveler, can be removed from the cockpit, making room for a small dodger.

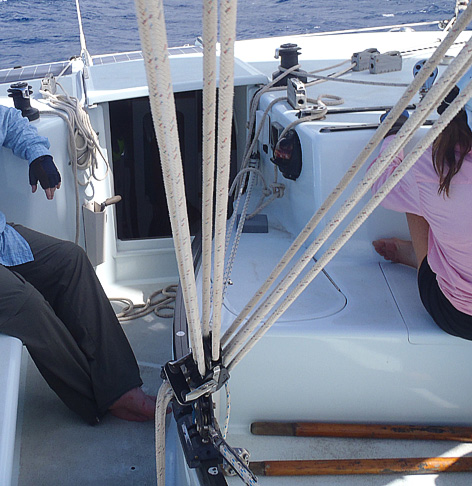

If the steering bar is moved, the mainsheet traveler can be on the aft crossbeam, as orignally designed, and these lines used to position it. A temporary preventer might be needed further outboard when running off the wind, acting to keep the mainsail leech tight. All aft of the cockpit, clear of the outboard and steering bar. Excellent jibe control. Similar to the two dark lines in this photo (below) of my old boat, the legendary Newick trimaran Moxie, attached at the end of the boom and running out to each hull aft of the crossbeam, then back to winches (or cam cleats) in the cockpit:


Depending on the angles, it might be possible to eliminate the traveler track and use these lines as the mainsheet?


Discussion: Twin mainsheet vs traveller mainsheet system pros/cons On big cats



video: "Shuttle 31" offshore (similar boat, 4' shorter)
